Our base standard specification

Newels - 90mm sq Laminated Pine/Redwood
Strings - 32mm Pine/Redwood
Treads - 27mm Pine/Redwood
Risers - 9mm Birch Plywood

There are many layout combinations that can be achieved. Below are just some of the most popular designs showing dimensions of the space required.

All of the following designs are based upon a floor to floor of 2735mm, an 800mm width overall of strings and a going of 233mm keeping pitch within 42 degrees. These are purely for illustration and are a guide to aid the planning of your stairs. We can manufacture to any size.

Please print off the design closest to your requirements and send back to us marked with measurements and changes needed. From this we can supply a unique drawing/plan that can be checked on site.

To maintain our speedy turnaround times, we only manufacture staircases of a traditional closed string/riser construction which are glued and wedged. Unfortunately at this time we don't produce cut string or open riser flights.

Download staircase design  Download the stair designs below as a pdf

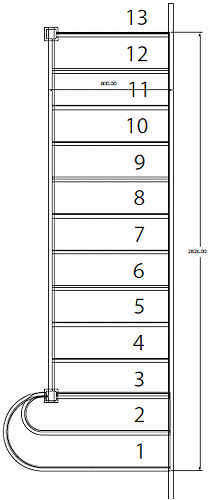

No.1 (straight flight with full curtail)

straight flight with full curtail staircase

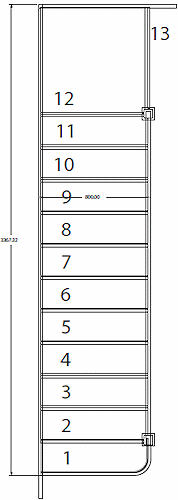

No.2 (quarter landing clockwise at top)

quarter landing clockwise at top staircase

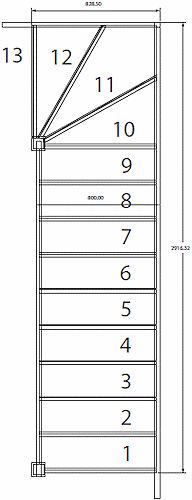

No.3 (three winder anti-clockwise)

three winder anti-clockwise staircase

No.4 (quarter landing clockwise)

quarter landing clockwise staircase

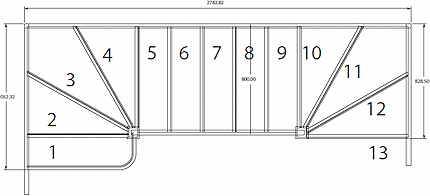

No.5 (six winder with bullnose)

six winder with bullnose staircase

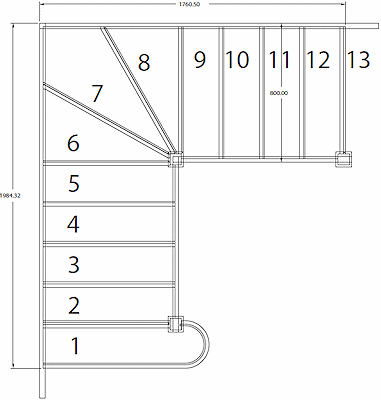

No.6 (three winder clockwise with half curtail)

three winder clockwise with half curtail staircase

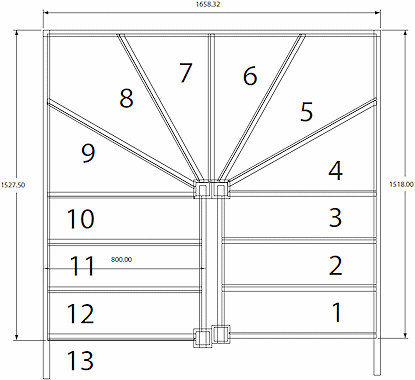

No.7 (six winder double newel anti clockwise)

six winder double newel anti clockwise staircase

Feature Bottom Treads

Bullnose
Shown here left hand side
Half Curtail
Shown here left hand side
Full Curtail
Shown here both sides

Staircase Terminology (including basic building regulations)

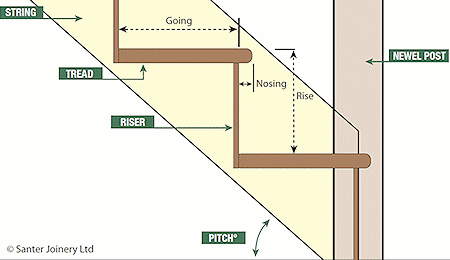

Staircase diagram
  • String - The sides of the staircase that is housed out to support the treads and risers. On a closed string construction the treads and risers are glued and wedged in place.
  • Newel - The post positioned at the end and turning points of the staircase. They serve to connect the strings and handrails. This is usually a standard size of 90mm square.
  • Tread - The flat surface of the step that is walked on.
  • Riser - The vertical face of each step connecting every tread together.
  • Nosing - The front edge of the tread that overhangs the riser. This is usually 20mm and rounded. This dimension is in addition to the going equalling the full tread depth.
  • Going - The horizontal dimension of each tread from face of riser to face of riser. For private dwellings this should be a minimum of 220mm. The going on tapered kite winder treads is measured from the centre walk line with the smallest point a minimum of 50mm.
  • Rise - The vertical dimension from the top surface of tread to top surface of tread. For private dwellings this should be a maximum of 220mm and all of equal size.
  • Pitch - The angle of the stairs to which it climbs. For private dwellings this should be no more than 42 degrees. This means that it is not possible to combine a maximum rise with a minimum going.

Permitted combinations of rise and going for stairways in private dwellings.


Rise <198 200 202 204 206 208 210 212 214 216 218 220
Going required * 220 223 225 227 229 231 234 236 238 240 243 245
* keeping pitch within 42 degrees
Going should be no less than 220mm regardless of rise. (all diamensions shown in mm)
